2020 Ford F-150 Transmission Rebuild Bowling Green, KY

This 2020 Ford F-150 came into our shop here in Bowling Green, Kentucky with two very common issues for the 10R80 transmission. The first was torque converter shutter and the second was a failure in the CDF drum. These symptoms tend to sneak up over time and often go unnoticed until the shifting becomes harsh or inconsistent.

We confirmed the customer’s complaints during our initial road test and by reviewing live transmission data. It was clear that the torque converter clutch was slipping under load and the gear transitions were beginning to flare. From experience, we knew exactly what we were looking at.

Once we pulled the transmission and opened it up, we found exactly what we expected. The CDF drum had worn to the point of failure and the torque converter clutch was breaking down. That meant metal had already started to circulate through the unit and cause damage to other components. At this point, a full transmission rebuild was the only proper fix.

When we rebuild a 10R80, we do not just patch it up and send it down the road. We go through the entire unit and install every known update available so that the customer ends up with a transmission that is better than it was from the factory.

Here is what went into this rebuild:

✅ Updated CDF drum with improved bushing support and fitment

✅ New multi-plate torque converter with improved clutch surface

✅ Full set of upgraded clutches

✅ Bonded pistons and updated molded seals for better reliability

✅ New sealing rings, and gaskets throughout the unit

✅ Recalibrated valve body with new valve sleeves and separator plate

✅ Updated pressure regulator valve

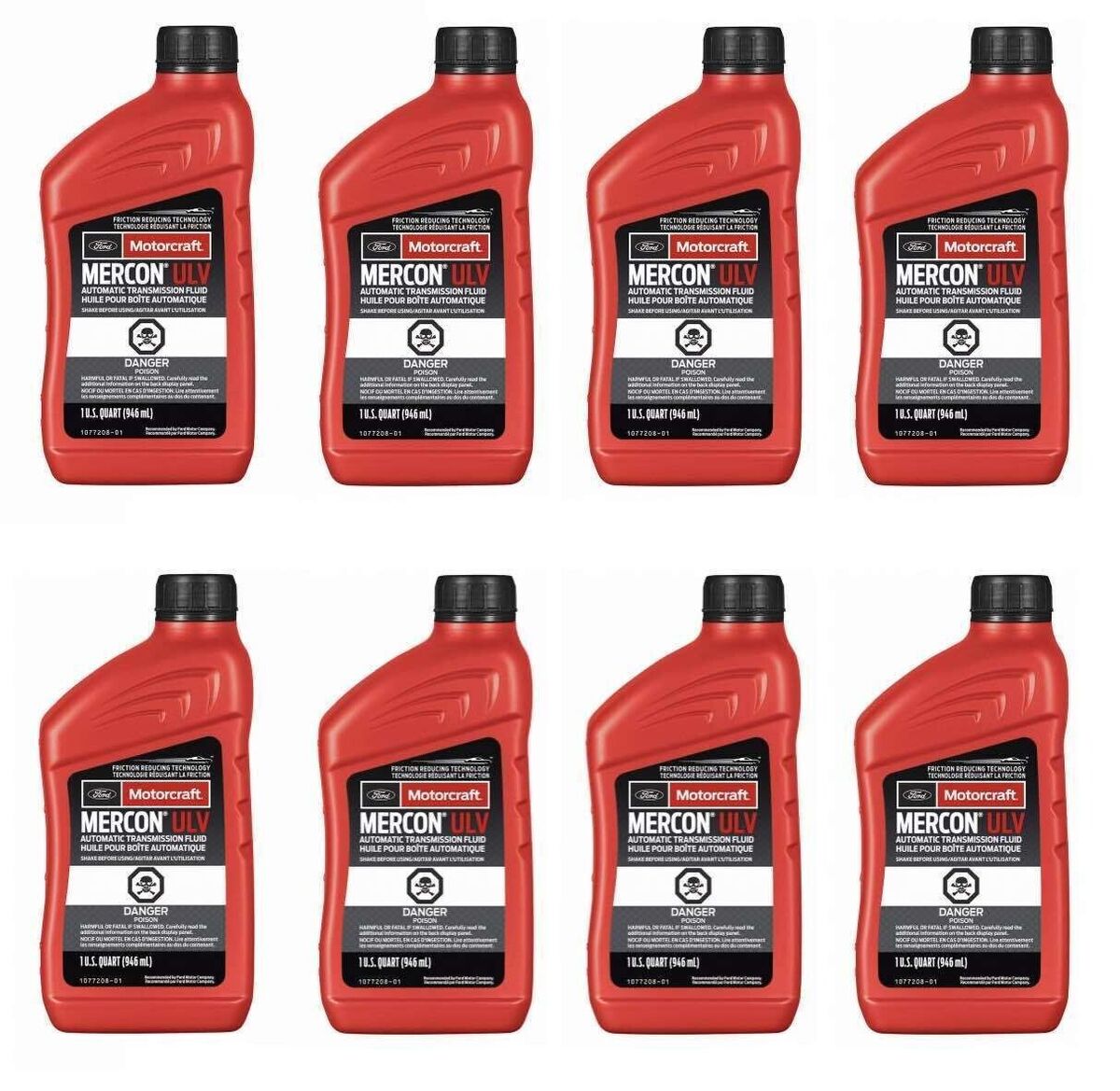

✅ ULV transmission fluid fill for better heat resistance and lubrication

✅ Full programming and relearn procedure for proper shift adaptation

With all updates installed and the transmission fully programmed, this Ford F-150 now drives smooth and strong. The shutter is gone, shifts are clean, and the internal durability has been significantly improved.

If you are driving a Ford F-150 and notice hesitation, shuttering, or harsh shifts, bring it to Wholesale Transmission Center in Bowling Green. We know the 10R80 inside and out and we will make sure it is done right.

Location: Bowling Green, KY
